Cat. No. M1734
BAY-60-7550 Structure

BAY 607550

Size Price Availability Quantity
5mg USD 162  USD180 In stock
10mg USD 270  USD300 In stock
50mg USD 792  USD880 In stock
Free Delivery on orders over USD 500 Bulk Inquiry?

Quality Control
Biological Activity

BAY-60-7550 is a potent Type 2 cyclic nucleotide phosphodiesterases (PDE2) inhibitor with IC50 values of 2.0 nM (bovine) and 4.7 nM (human). BAY-60-7550 is an analog of EHNA, which is more than 100-fold more potent and is highly selective for PDE2A.

Customer Product Validations & Biological Datas

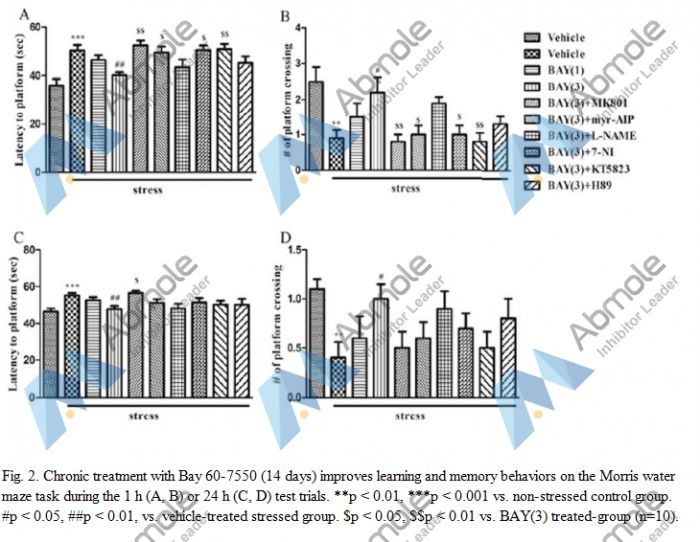

Source Neurobiol Aging (2015). Figure 1. BAY-60-7550
Method i.v.
Cell Lines mice
Concentrations 3 mg/kg
Incubation Time 24 h
Results Bay 60-7550-treated mice (3 mg/kg) took significantly less time to reach the platform position, and made more crossings over the platform, than stressed mice
Cell Experiment
Cell lines human distal pulmonary artery smooth muscle cells
Preparation method Cell proliferation.
Growth of human distal pulmonary artery smooth muscle cells isolated from patients with idiopathic pulmonary arterial hypertension (IPAH) or control cells from adults undergoing transplant or lung resection for suspected malignancy, were monitored as we have described previously 29 following treatment with BAY 60-7550 (1μmol/L), ANP (1μmol/L), DETA-NONOate (10μmol/L), or treprostinil (1μmol/L), alone or in combination.
Concentrations 1μmol/L
Incubation time unknow
Animal Experiment
Animal models Oxidative Stress on Behavior in mice
Formulation dissolved in 50% dimethyl sulfoxide (Fisher Scientific Co., Pittsburgh, PA)
Dosages 3 mg/kg; given 30 min before each BSO treatment
Administration i.p.
Conversion of different model animals based on BSA (Value based on data from FDA Draft Guidelines)
Species Mouse Rat Rabbit Guinea pig Hamster Dog
Weight (kg) 0.02 0.15 1.8 0.4 0.08 10
Body Surface Area (m2) 0.007 0.025 0.15 0.05 0.02 0.5
Km factor 3 6 12 8 5 20
Animal A (mg/kg) = Animal B (mg/kg) multiplied by  Animal B Km
Animal A Km

For example, to modify the dose of resveratrol used for a mouse (22.4 mg/kg) to a dose based on the BSA for a rat, multiply 22.4 mg/kg by the Km factor for a mouse and then divide by the Km factor for a rat. This calculation results in a rat equivalent dose for resveratrol of 11.2 mg/kg.

Chemical Information
Molecular Weight 476.57
Formula C27H32N4O4
CAS Number 439083-90-6
Purity >99%
Solubility DMSO 5 mg/mL
Storage at -20°C

Inhibition of phosphodiesterase 2 augments cGMP and cAMP signaling to ameliorate pulmonary hypertension.
Bubb KJ, et al. Circulation. 2014 Aug 5;130(6):496-507. PMID: 24899690.

Phosphodiesterase-2 inhibitor reverses corticosterone-induced neurotoxicity and related behavioural changes via cGMP/PKG dependent pathway.
Xu et al. Int J Neuropsychopharmacol. 2012 Jul 31;1-13. PMID: 22850435.

Mechanisms of carbon monoxide attenuation of tubuloglomerular feedback.
Ren et al. Hypertension. 2012 Jun;59(6):1139-44. PMID: 22508834.

Selective phosphodiesterase inhibitors improve performance on the ED/ID cognitive task in rats
Rodefer et al. Neuropharmacology. 2012 Mar;62(3):1182-90. PMID: 21856317.

PDE5A suppression of acute beta-adrenergic activation requires modulation of myocyte beta-3 signaling coupled to PKG-mediated troponin I phosphorylation.
Lee et al. Basic Res Cardiol. 2010 May;105(3):337-47. PMID: 20107996.

Reversal of oxidative stress-induced anxiety by inhibition of phosphodiesterase-2 in mice.
Masood A, et al. J Pharmacol Exp Ther. 2008 Aug;326(2):369-79. PMID: 18456873.

Related PDE Products

Vesnarinone is a cardiotonic agent, mixed phosphodiesterase 3 inhibitor and ion-channel modifier that has modest, dose-dependent, positive inotropic activity.

Roflumilast N-oxide

Roflumilast N-oxide is a phosphodiesterase 4 inhibitor.


CP671305 is a potent and selective, orally active inhibitor of phosphodiesterase-4-D with high activities.

ITI-214 phosphate

ITI-214 phosphate is an orally active, potent and selective inhibitors of PDE1, exhibits potent PDE1 inhibitory activity (Ki = 58 pM).


IBMX is a pDE inhibitor (non-selective) with IC50 values of 6.5±1.2, 26.3±3.9 and 31.7±5.3 μM for PDE3, 4 and 5 respectively.
