Cat. No. M2235

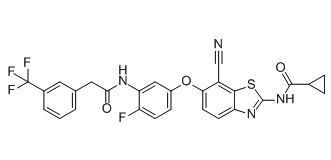

TAK-632 Structure
Size Price Availability Quantity
Free Sample (0.5-1 mg)  USD 0 In stock
10mg USD 110 In stock
25mg USD 200 In stock
50mg USD 300 In stock
100mg USD 500 In stock
Free Delivery on orders over USD 500 Bulk Inquiry?

Quality Control
Biological Activity

TAK-632 is a selective kinase inhibitor targeting pan-RAF inhibition. TAK-632 inhibited phosphorylation of MEK (pMEK) in melanoma A375 cells (BRAFV600E) with an IC50 value of 12 nM. TAK-632 suppresses RAF activity in BRAF wild-type cells with minimal RAF paradoxical activation. TAK-632 induces RAF dimerization but inhibits the kinase activity of the RAF dimer, probably because of its slow dissociation from RAF. TAK-632 demonstrates potent antiproliferative effects both on NRAS-mutated melanoma cells and BRAF-mutated melanoma cells with acquired resistance to BRAF inhibitors through NRAS mutation or BRAF truncation.

Customer Product Validations & Biological Datas
Source Cancer Res (2013). Figure 1. TAK-632
Method Western blot analysis
Cell Lines A431, CsFb, and HeLa cells
Concentrations 0-5000 nmol/L
Incubation Time 2 h
Results MEK and ERK phosphorylation was modestly induced at low TAK-632 concentrations but inhibited at higher concentrations in BRAF wild-type cells
Conversion of different model animals based on BSA (Value based on data from FDA Draft Guidelines)
Species Mouse Rat Rabbit Guinea pig Hamster Dog
Weight (kg) 0.02 0.15 1.8 0.4 0.08 10
Body Surface Area (m2) 0.007 0.025 0.15 0.05 0.02 0.5
Km factor 3 6 12 8 5 20
Animal A (mg/kg) = Animal B (mg/kg) multiplied by  Animal B Km
Animal A Km

For example, to modify the dose of resveratrol used for a mouse (22.4 mg/kg) to a dose based on the BSA for a rat, multiply 22.4 mg/kg by the Km factor for a mouse and then divide by the Km factor for a rat. This calculation results in a rat equivalent dose for resveratrol of 11.2 mg/kg.

Chemical Information
Molecular Weight 554.52
Formula C27H18F4N4O3S
CAS Number 1228591-30-7
Purity 98.86%
Solubility DMSO 100 mg/mL
Storage at -20°C
Related Raf Products

PLX7904, also known as PB04, is a potent and selective paradox-breaker RAF inhibitor.


PLX8394 is an orally bioavailable, potent and selective Raf inhibitor with IC50 of 5 nM.


B-Raf-IN-1 (MDK36057) is a potent b-Raf inhibitor with IC50 of 24 nM.


RAF709 is a novel Raf kinase inhibitor with IC50 values of 0.4 and 1.5 nM for c-Raf and b-Raf, respectively.


L-779450 is a potent, ATP-competitive Raf kinase inhibitor (IC50 =10 nM) that displays > 7, > 30 and > 70-fold selectivity over p38α, GSK3β and Lck respectively.
